The FINESSE 80mm Series:
A Revolution in Composite Glazing
Passive House Certified (phC) windows with a Uw as low as 0.77. Eliminating the 40-60% thermal bridge common in traditional frames.
FINESSE 80mm Series Technical Specifications
Engineered for Australian climate extremes. Certified to international Passive House standards.
Industry-leading thermal insulation for Melbourne's climate
Complete window assembly thermal performance
Independently verified thermal efficiency class phC
Technical Documentation & Certifications
Passive House Certification
Passivhaus Institut, Germany
Official Passive House Component Certificate from Germany's Passivhaus Institut. Confirms thermal performance class phC certification for FINESSE 80mm window systems meeting stringent energy efficiency standards.
Complete Test Report 2022-009-S2
Comprehensive NATA accredited testing results for tilt & turn window systems, including structural performance, air infiltration, water penetration, and operating force tests.
Test Report 2
Additional NATA accredited testing documentation for window and door systems performance verification.
Test Report 3
Comprehensive testing documentation for window and door systems compliance and performance standards.
Profile System
Thermal Performance
Glazing System
Innovation
Glazing System Performance Data

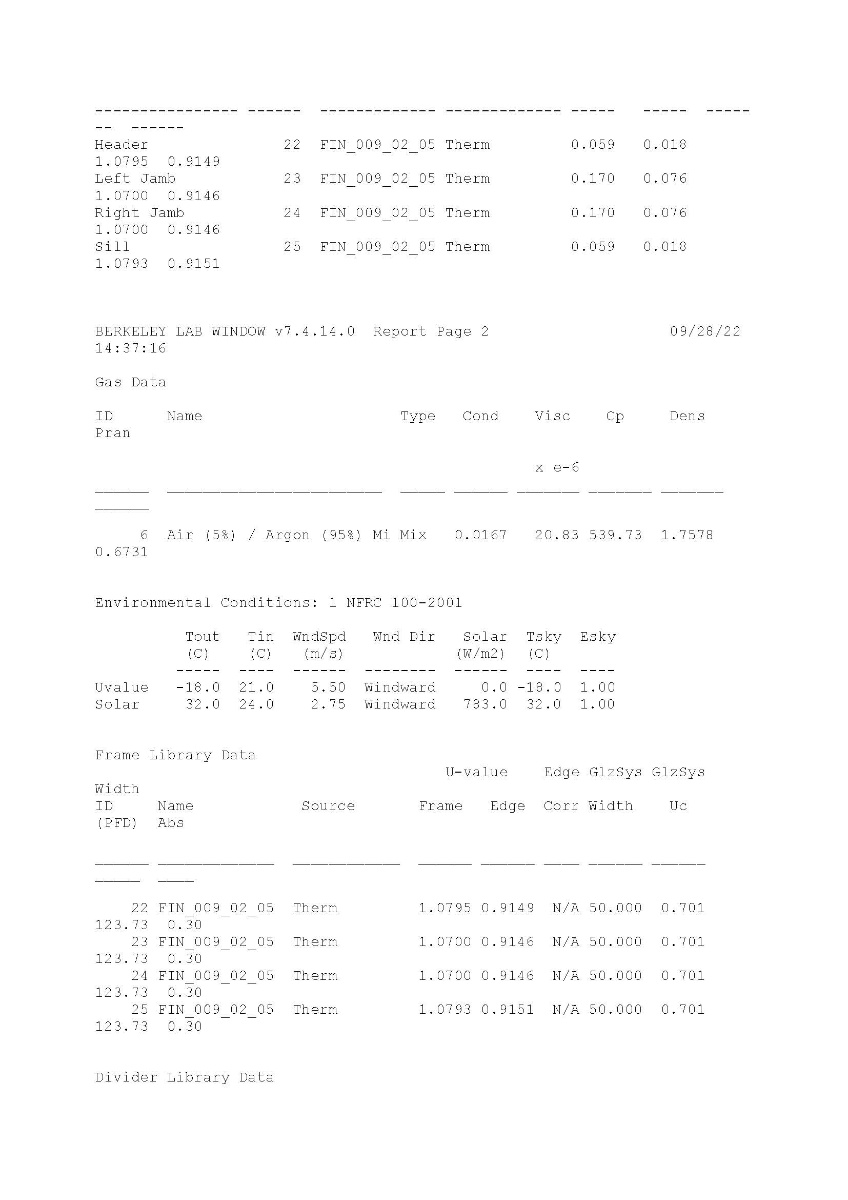

Independently tested and certified by Lawrence Berkeley National Laboratory (LBNL) using NFRC 100-2001 standards

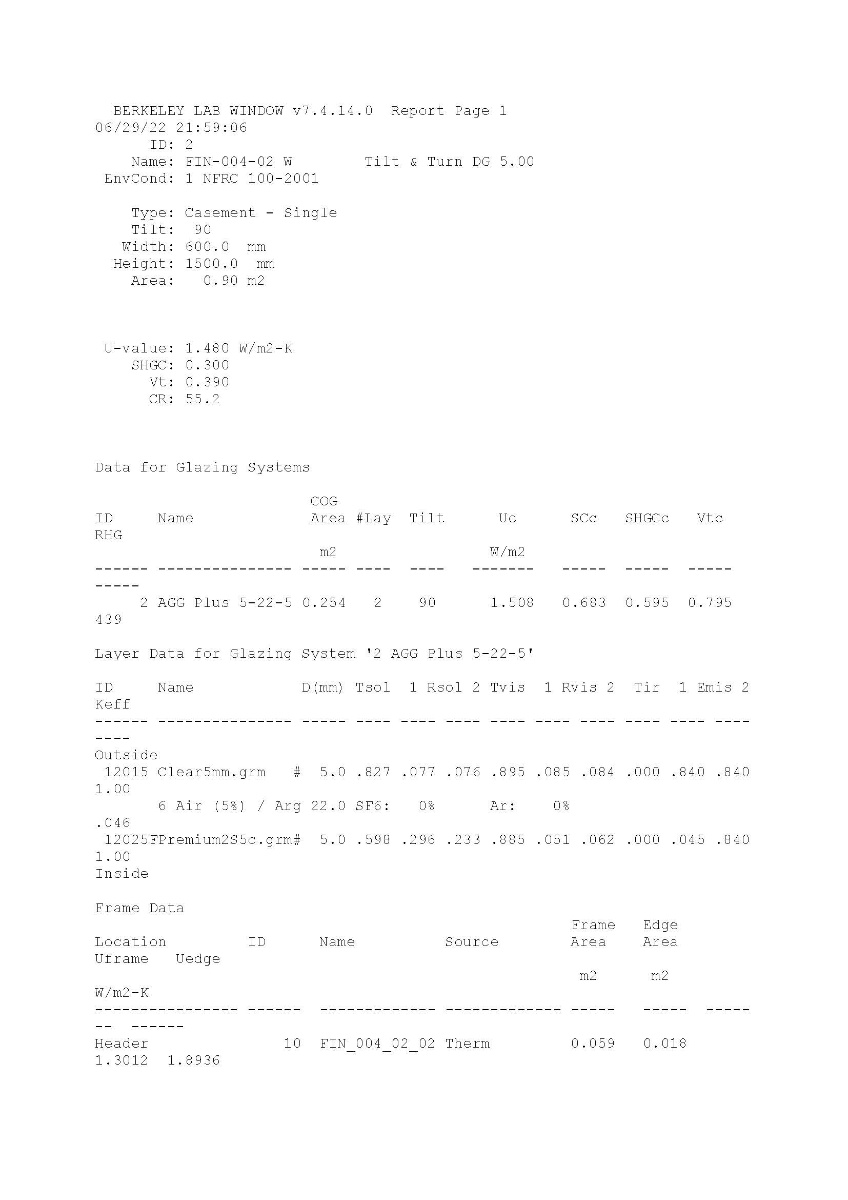

Tilt & Turn DG 5.0C
Tilt & Turn TG 0.4 - WES
Performance Comparison
| Specification | Double Glazing | Triple Glazing | Improvement |
|---|---|---|---|
| U-Value (W/m²-K) | 1.508 | 0.934 | 38% Better |
| SHGC (Solar Heat Gain) | 0.683 | 0.746 | 9% Higher |
| Visible Light (VLt) | 79.5% | 34.3% | Lower light transmission |
Triple glazing provides 38% better insulation, ideal for Passive House projects
Both systems offer excellent solar heat gain for Melbourne's climate
Independently tested using NFRC 100-2001 methodology by Berkeley Lab

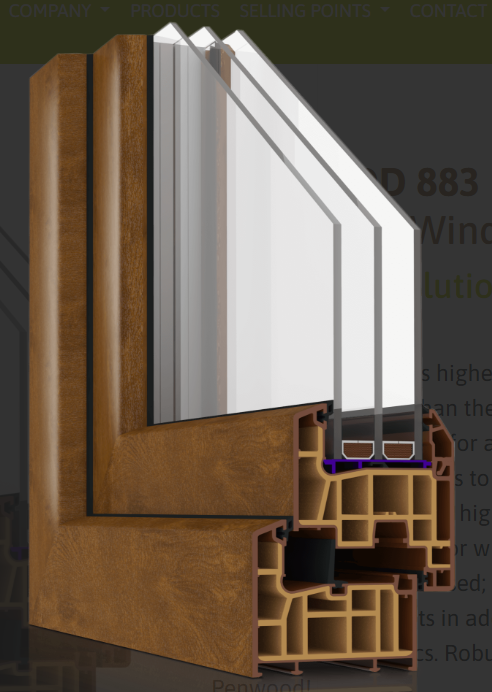

Revolutionary Composite Core Technology
The FINESSE 80mm Series features an innovative PVC + Wood Dust Composite inner structure that eliminates the need for traditional steel reinforcement while delivering superior strength and thermal performance.
What Makes It Revolutionary:
- 2.7mm composite inner curtain provides exceptional structural integrity
- Zero thermal bridging - no cold transfer through the frame
- Higher robustness than standard steel-reinforced profiles
- 100% recyclable and environmentally friendly
- Superior fire, impact, and moisture resistance
The Innovation Advantage
Thanks to the unique fusion characteristics of the wood-composite material, FINESSE offers exceptional resistance and strength at profile edges - making it the ideal choice for demanding architectural applications.
Traditional Steel-Reinforced PVC
- •Requires additional steel reinforcement sheets
- •Creates 40-60% thermal bridge through frame
- •Higher installation time and cost
- •Cold transfer in winter, heat gain in summer
- •Condensation risk on interior surfaces
- •Lower environmental sustainability
FINESSE 80mm Composite System
- •No additional reinforcement needed - composite core provides strength
- •Zero thermal bridging - complete insulation
- •Faster installation, reduced costs
- •60% reduction in energy loss
- •Consistent interior temperature year-round
- •100% recyclable, eco-friendly solution
Superior Strength
Composite core delivers higher robustness than traditional steel-reinforced profiles without thermal compromise.
Thermal Excellence
Uf: 0.90 W/m²K frame value and Uw: 0.77 W/m²K window value - certified Passive House performance.
Eco-Friendly
100% recyclable materials with sustainable wood-composite technology for environmentally conscious projects.
The "Melbourne Comfort" Solution
Engineered specifically for Melbourne's notorious "Four Seasons in One Day" climate challenge
The Problem
- 60% heating energy loss through older window systems in Melbourne homes
- Street noise pollution from high-traffic urban zones
- Extreme temperature swings from 5°C to 35°C in a single day
- Condensation and drafts compromising interior comfort
The FINESSE 80mm Series Solution
- 60% reduction in heating energy loss vs. traditional frames
- Up to 45dB acoustic reduction via triple-seal system
- Consistent interior temperature regardless of external conditions
- Zero condensation with superior thermal break technology
0.77
Uw Value (W/m²K)
45dB
Acoustic Reduction
60%
Energy Loss Reduction
phC
Passive House Certified
Perfect for High-Traffic Melbourne Zones
The triple-seal system is specifically engineered for urban environments with high noise pollution and extreme temperature variations.
Technical Resources & Downloads
Complete documentation package for architects, specifiers, and building designers
Glazing Performance Data
Berkeley Lab certified U-values, SHGC & VLT for double and triple glazing systems
Double Glazing
Triple Glazing
PremiumTechnical Specifications
Detailed specifications for 80mm 6-chamber uPVC profile system with triple glazing capability and Siegenia hardware.
CAD Details & Drawings
Frame Montage Detail with precise measurements (50mm, 69mm, 80mm sections). Includes cross-sectional views, installation details, and junction specifications for all window systems.
U-Value Calculations
Detailed thermal performance calculations for all window and door configurations, including frame, glazing, and edge seal contributions.
Installation Manual
Step-by-step installation guide with weatherproofing details, fixing schedules, and quality control checklists.
Compliance Certificates
AS2047 certification, BAL ratings, acoustic testing results, and Australian Standards compliance documentation.
Color & Finish Samples
Complete color palette including Monument, Jet Black, Toffee Oak, Malt Oak, and White with RAL color codes.
Hardware Specifications
Siegenia TITAN AF hardware technical data, load ratings, security features, and maintenance schedules.
Need Custom Documentation?
Our technical team can provide project-specific calculations, custom CAD details, and specification support.
